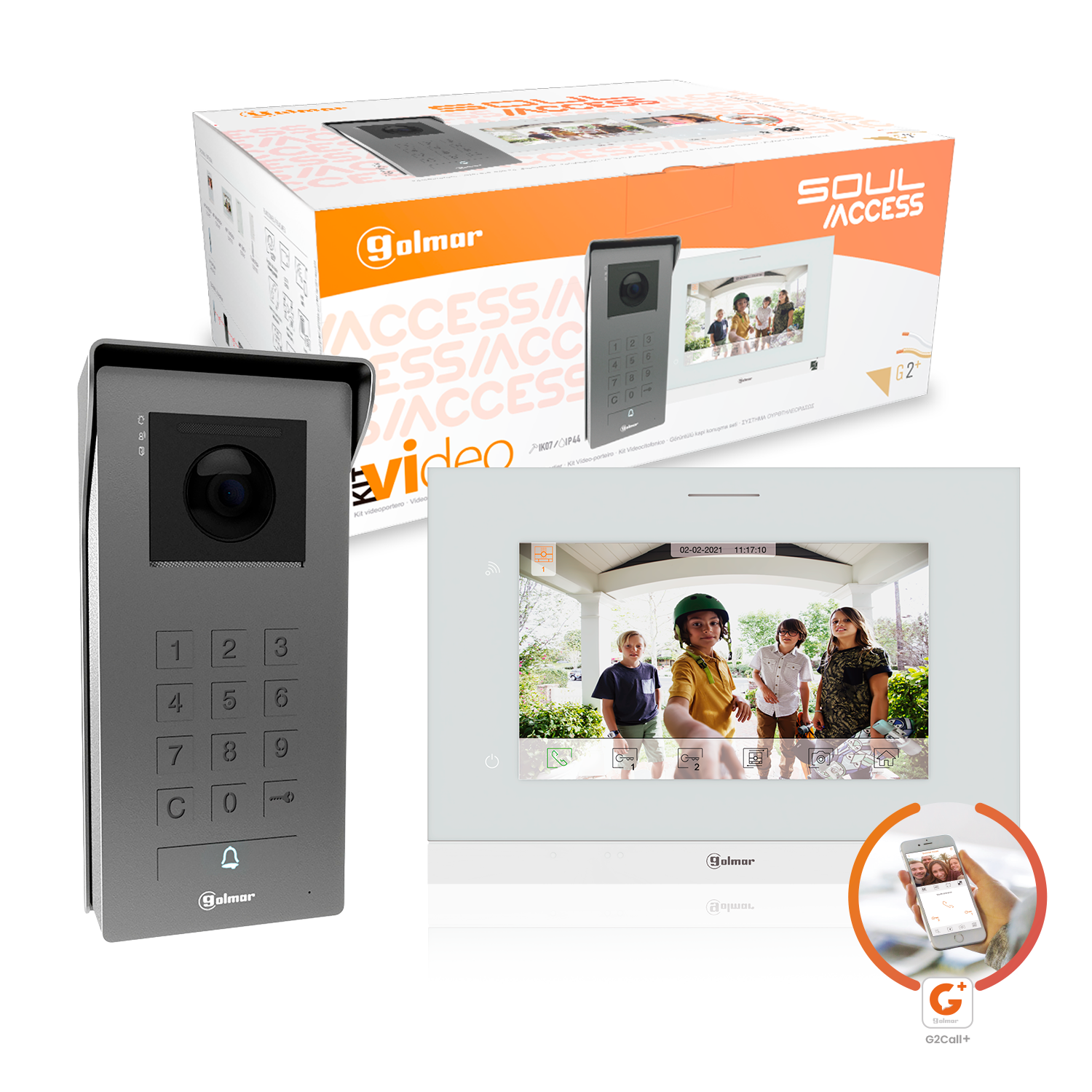

PRODUCT DETAILS
Reference : S5110 ACCESS/ART 7W
Product code: 12205175
EAN code : 8429898024783
SOUL/ACCESS video door phone kit with 2-wire G2+ technology.
Composed of:
- Door panel SOUL/ACCESS video vandal resistant with numeric keypad.
- 7″ ART 7W/G2+ monitor.
- FA-G2+ power supply.
MORE INFORMATION
-
Characteristics of the 7″ ART 7W/G2+ monitor:
- 7″ capacitive touch screen, soft touch buttons.
- High efficiency loudspeakers.
- Call forwarding through WIFI to mobile phones (app G2Call+, available for Android and IOS).
- Audio communications, video and secret door opening.
- Video-spy functions, auto-start, doctor mode and do not disturb.
- Intercommunication with other units of the house selectively.
- Personalization of ring tones.
- Connection to the entrance door pushbutton, which saves the use of the doorbell.
- Output to auxiliary call repeater.
- Image memory, up to 100 photos in internal storage. Micro SD card slot for video recording.
- Functionality of automatic erasure of images after 30 days.
- Up to 4 monitors in the same house without additional power.
Dimensions: 222(W) x 154(H) x 15(D) mm.
Characteristics of the SOUL/ACCESS panel:
- Made of Zamak alloy, graphite color.
- Vandal-proof: IK-07 and IP-54 weatherproof.
- 150º wide-angle camera with white auto-on LEDs for night vision.
- LEDs indicating the different states of the system (call in progress, communication, door opening).
- Backlit metal push buttons with serigraphy of numbers and characters.
- Secret communication of audio, video, and door opening process.
- Acoustic confirmation tones when pressing buttons.
- Relay output for the activation of two doors.
- Surface mount.
- Includes rainshield.
Dimensions: 87(W) x 188(H) x 30(D) mm.

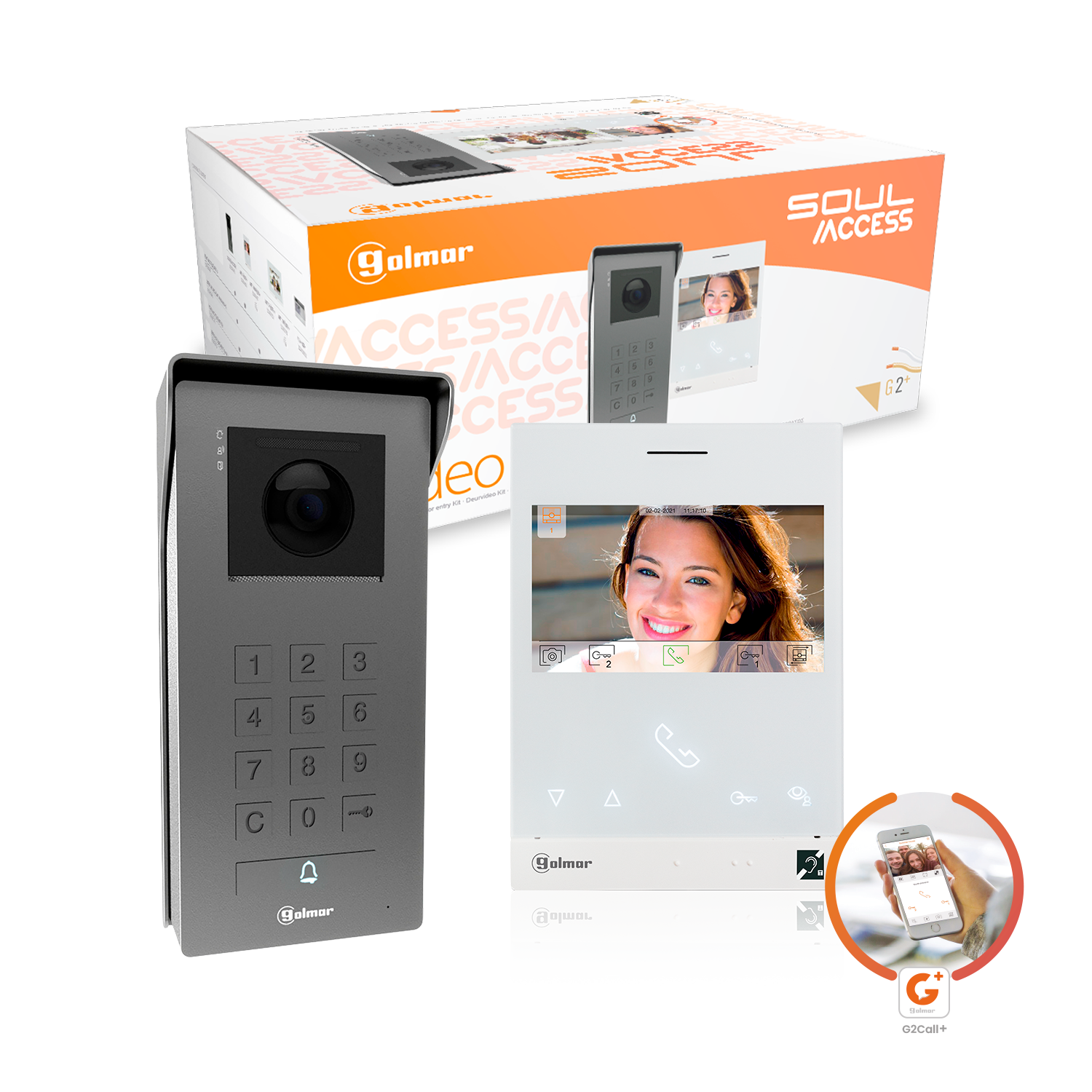

PRODUCT DETAILS
Reference : S5110 ACCESS/ART 4WH
Product code: 12205145
EAN code : 8429898024769
SOUL/ACCESS video door phone kit with 2-wire G2+ technology.
Composed of:
- Door panel SOUL/ACCESS video vandal resistant with numeric keypad.
- 4,3″ ART 4WH/G2+ monitor.
- FA-G2+ power supply.
MORE INFORMATION
-
Characteristics of the 4,3″ ART 4WH monitor:
- 4.3″ screen with soft touch buttons.
- High efficiency loudspeakers.
- Call forwarding through WIFI to mobile phones (app G2Call+, available for Android and IOS).
- Audio communications, video and secret door opening.
- Video-spy functions, auto-start, doctor mode and do not disturb.
- Intercommunication with other units of the house selectively.
- Personalization of ring tones.
- Connection to the entrance door pushbutton, which saves the use of the doorbell.
- Output to auxiliary call repeater.
- Image memory, up to 100 photos in internal storage. Micro SD card slot for video recording.
- Functionality of automatic erasure of images after 30 days.
- Up to 4 monitors in the same house without additional power.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Characteristics of the SOUL/ACCESS panel:
- Made of Zamak alloy, graphite color.
- Vandal-proof: IK-07 and IP-54 weatherproof.
- 150º wide angle camera with white auto-on LEDs for night vision.
- LEDs indicating the different states of the system (call in progress, in communication, door opening).
- Backlit metal push buttons with serigraphy of numbers and characters.
- Secret communication of audio, video and door opening process.
- Acoustic confirmation tones when pressing buttons.
- Relay output for the activation of two doors.
- Surface mount.
- Includes rainshield.
Dimensions: 87(W) x
PRODUCT DETAILS
Reference : SOUL/1B
Product code: 12225401B
EAN code: 8429898015132
- Zamak front in black finish.
- CMOS 120º camera.
- Vandal resistant (IK-07) and weatherproof (IP-44) door panel.
- Auto-start LEDs depending on outdoor lighting.
- LEDs indicate the different states of the system (call in progress, communication, door opening, or occupied system).
- Metallic call button.
- Secret communication of audio, video, and door opening.
- Relay output for activation of two doors.
- Connection to analog CCTV camera.
- RFID proximity reader for 60 users.
- Surface installation.
- VIS-SOUL rain shield is included.
Dimensions: 90(W) x 170(H) x 27(D) mm.
MORE INFORMATION
Characteristics of the 7″ ART 7H/G2+ monitor:
- 7″ screen with capacitive navigation buttons.
- High efficiency loudspeakers.
- Audio communications, video and secret door opening.
- Video-spy functions, auto-start, doctor mode and do not disturb.
- Intercommunication with other units of the house selectively.
- Personalization of ring tones.
- Connection to the entrance door pushbutton, which saves the use of the doorbell.
- Output to auxiliary call repeater.
- Image memory, up to 100 photos in internal storage. Micro SD card slot for video recording.
- Functionality of automatic erasure of images after 30 days.
- Up to 4 monitors in the same house without additional power.
Dimensions: 222(W) x 154(H) x 15(D) mm.
Characteristics of the SOUL/ACCESS panel:
- Made of Zamak alloy, graphite color.
- Vandal-proof: IK-07 and IP-54 weatherproof.
- 150º wide angle camera with white auto-on LEDs for night vision.
- LEDs indicating the different states of the system (call in progress, in communication, door opening).
- Backlit metal push buttons with serigraphy of numbers and characters.
- Secret communication of audio, video and door opening process.
- Acoustic confirmation tones when pressing buttons.
- Relay output for the activation of two doors.
- Surface mount.
- Includes rainshield.
Dimensions: 87(W) x 188(H) x 30(D) mm.

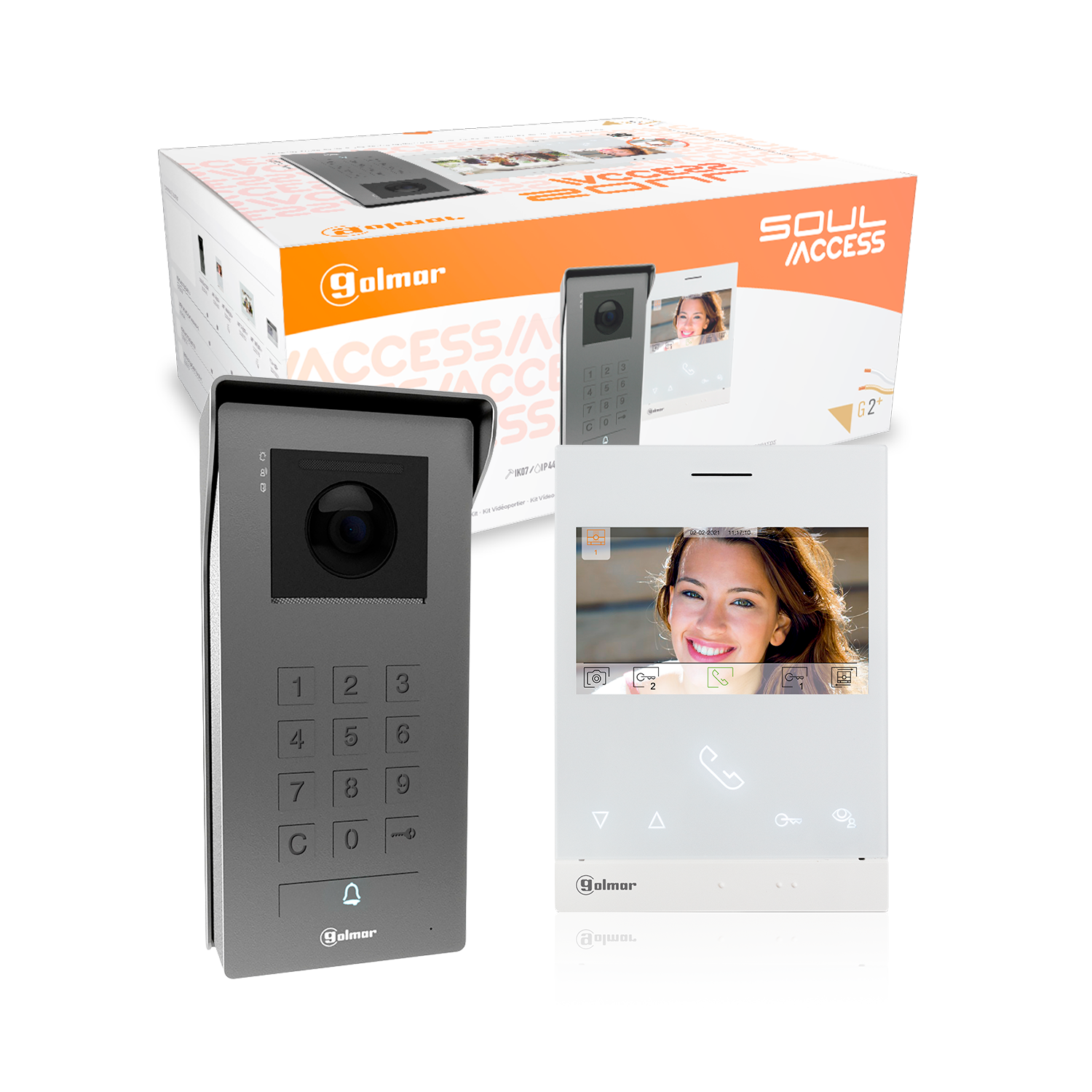

PRODUCT DETAILS
Reference: S5110 ACCESS/ART 4
Product code: 12205140
EAN code: 8429898024752
SOUL/ACCESS video door phone kit with 2-wire G2+ technology.
Composed of:
- Door panel SOUL/ACCESS video vandal resistant with numeric keypad.
- 4,3″ ART 4/G2+ monitor.
- FA-G2+ power supply.
MORE INFORMATION
-
Characteristics of the ART 4/G2+ monitor:
- 4.3″ screen with capacitive navigation buttons.
- High efficiency loudspeakers.
- Audio communications, video and secret door opening.
- Video-spy functions, auto-start, doctor mode and do not disturb.
- Intercommunication with other units of the house selectively.
- Personalization of ring tones.
- Connection to the entrance door pushbutton, which saves the use of the doorbell.
- Output to auxiliary call repeater.
- Image memory, up to 100 photos in internal storage. Micro SD card slot for video recording.
- Functionality of automatic erase of images after 30 days.
- Up to 4 monitors in the same house without additional power.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Characteristics of the SOUL/ACCESS panel:
- Made of Zamak alloy, graphite color.
- Vandal-proof: IK-07 and IP-54 weatherproof.
- 150º wide angle camera with white auto-on LEDs for night vision.
- LEDs indicating the different states of the system (call in progress, in communication, door opening).
- Backlit metal push buttons with serigraphy of numbers and characters.
- Secret communication of audio, video and door opening process.
- Acoustic confirmation tones when pressing buttons.
- Relay output for the activation of two doors.
- Surface mount.
- Includes rainshield.
Dimensions: 87(W) x 188(H) x 30(D) mm.
PRODUCT DETAILS
Reference : S4110/T-ART
Product code: 12204110
EAN code : 8429898023526
Soul audio door phone kit with 2-wire G2+ technology.
Composed of:
- Door panel SOUL/1A audio vandal resistant with one push button.
- Telephone T-ART/G2+.
- Power supply FA-G2+/LITE.
Up to 4 telephones in the same villa.
MORE INFORMATION
Characteristics of the telephone:
- Duplex audio communication.
- Secret audio communication and door opening.
- Do not disturb function with indicator.
- Connection to the entrance door pushbutton, which saves the use of the doorbell.
- Different ringing tones depending on the place from where the call was made.
- Status LEDs: door open, do not disturb, switched on.
- Volume regulation.
- Output to auxiliary call repeater.
- Intercommunication with other units of the house.
- Additional button to activate a second electric lock release connected to the outdoor panel, or to activate the staircase lights by using a SAR-G2+ digital relay unit.
Dimensions: 86(W) x 154(H) x 31(D) mm.
Characteristics of the panel:
- Zamak front in graphite finish.
- Vandal resistant (IK-07) and weatherproof (IP-44) door panel.
- Metallic call button.
- Secret communication of audio and door opening.
- Relay output for activation of two doors.
- Includes rainshield. Surface installation.
Dimensions: 90(W) x 170(H) x 27(D) mm.
